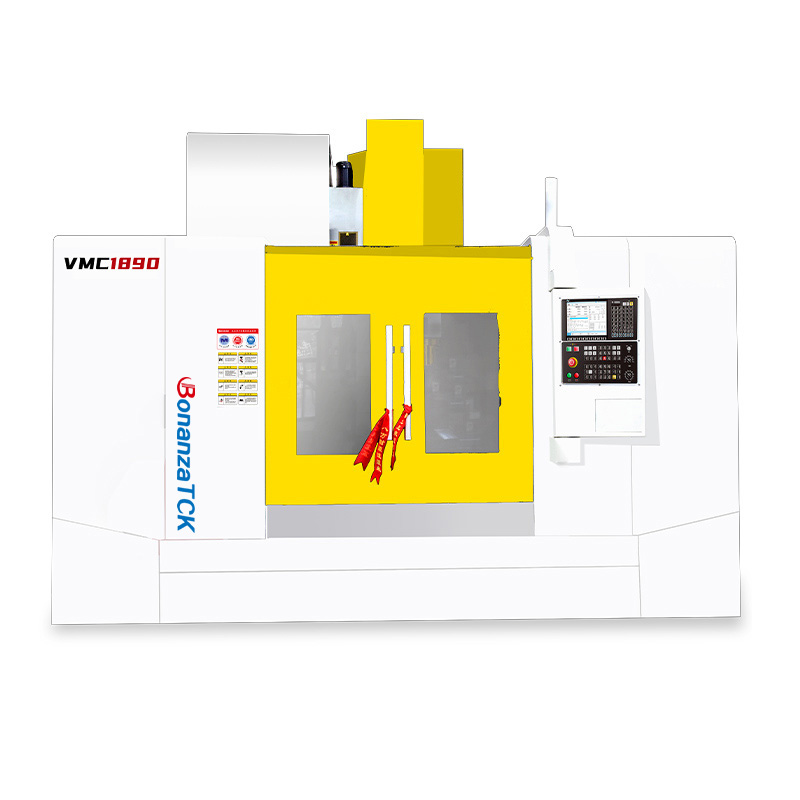

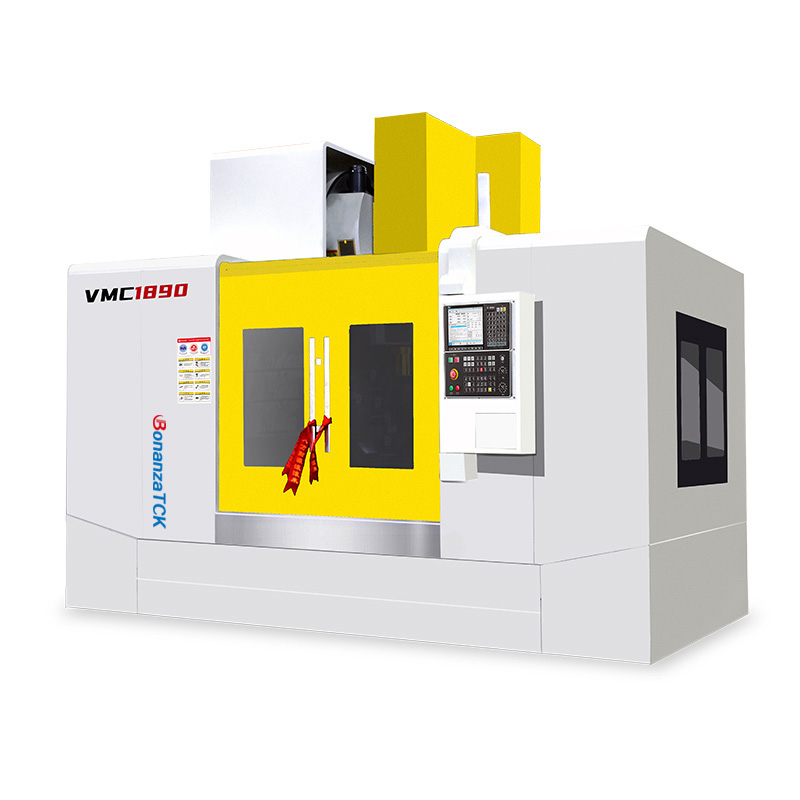

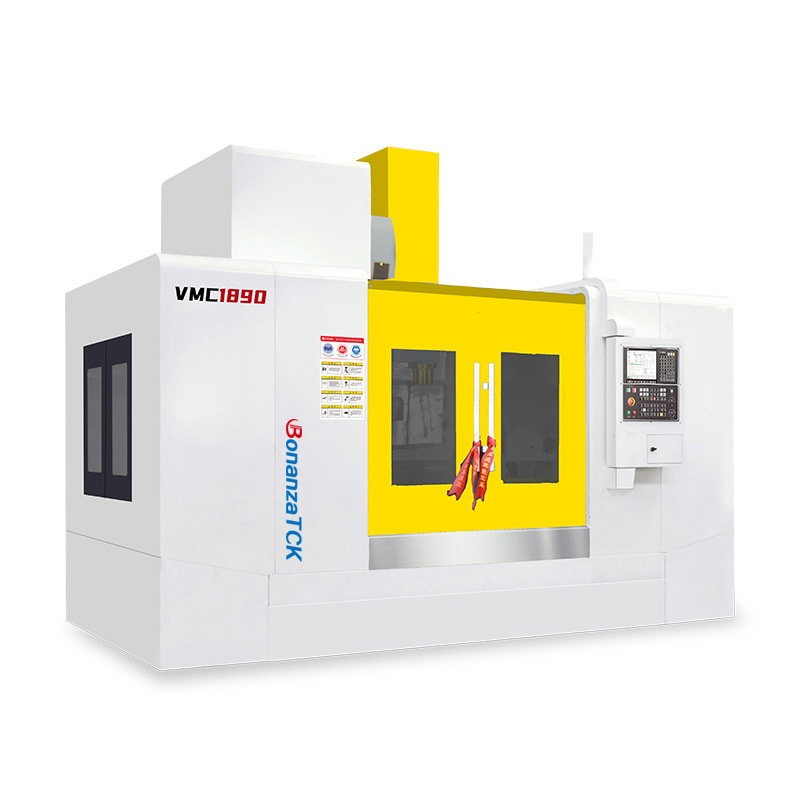

VMC1890 Vertical Machining Center

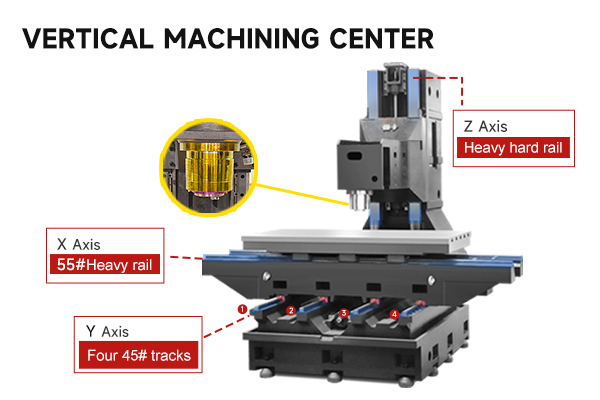

The three-axis bearing adopts a front four rear three structure for more stable transmission, strong rigidity, and longer service life.
The main shaft adopts the BT50-190 outer diameter short nose type main shaft, equipped with 72 teeth and broadband wheels+15KW rated 1000 low-speed high torque motor, high load, heavy cutting, and a 50% increase in machining torque.
  • Work table size
    1600*800mm
  • X/Y/Z-axis travel
    1600*900*700 mm
  • Spindle taper
    BT50-190

Details


Specifications

speicificationsVMC1890
Table size （mm）2000×900
Max. worktable load（kg）1600
X-axis travel(mm)1800
Y-axis travel(mm)900
Z-axis travel(mm)600
X-axis Fast shift speed(m/min)20
Y-axis Fast shift speed(m/min)20
Z-axis Fast shift speed(m/min)15
Spindle taper holeBT50Φ190
Spindle speed (rpm)6000
machine size (mm)5000L*3000W*2900H
Machine weight (KG)14000
