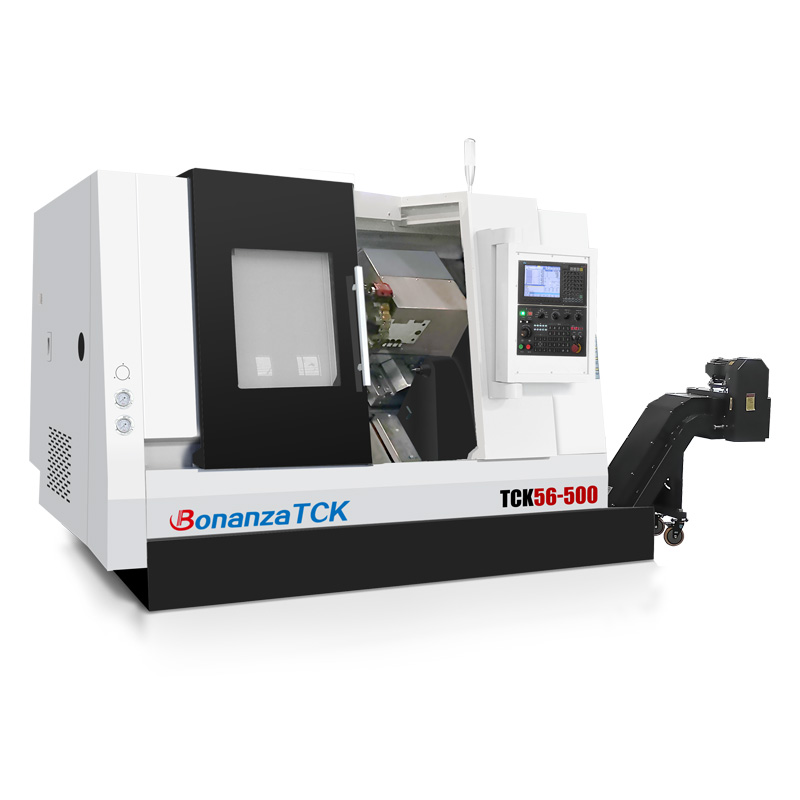

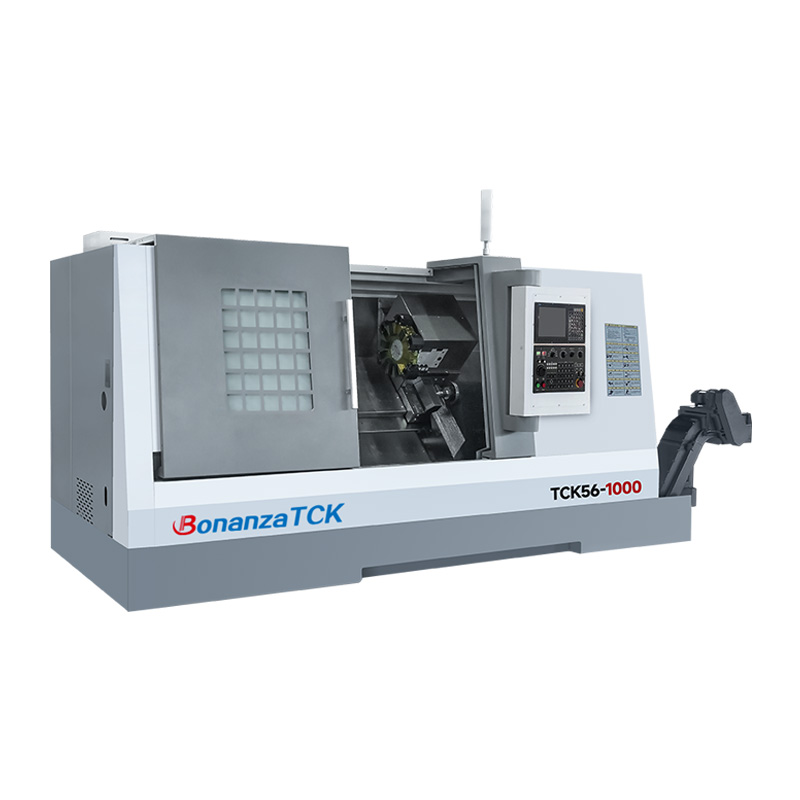

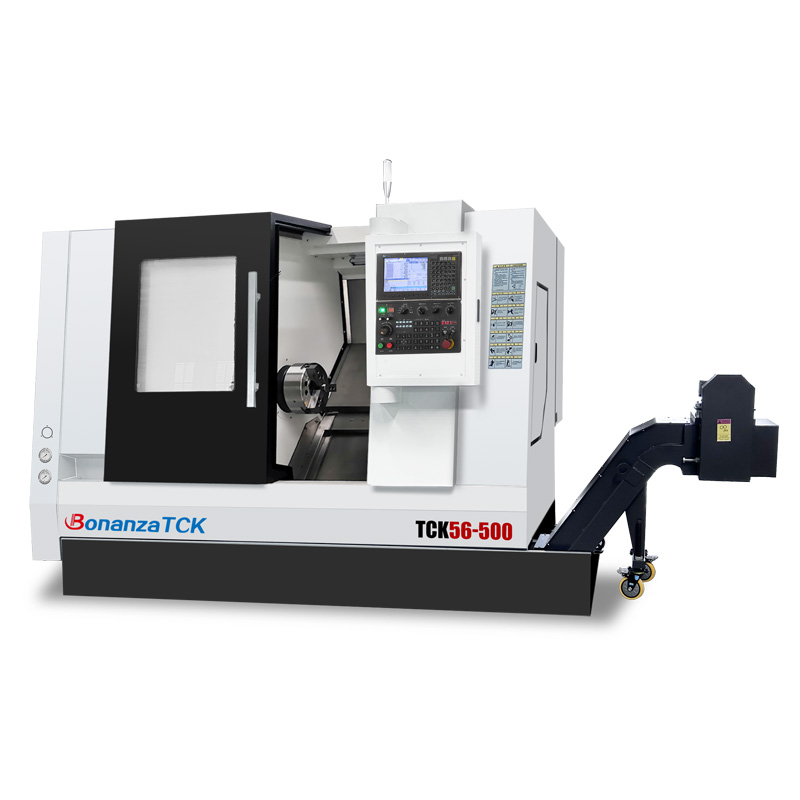

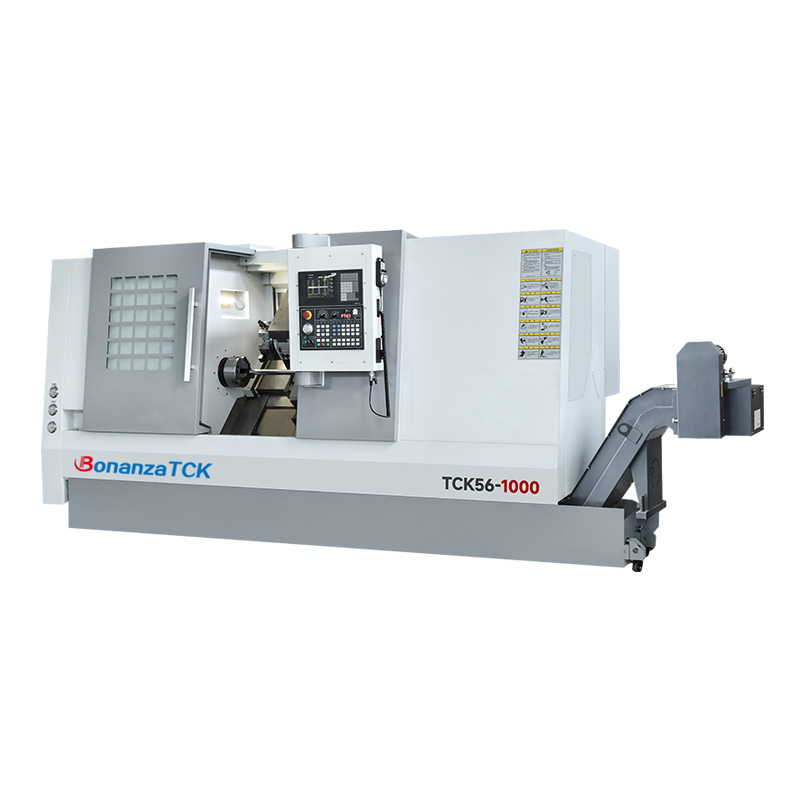

| speicifications | TCK56-500 | TCK56-1000 |
| Max. turning diameter on bed(mm) | 500 | 560 |
| Max. cutting length(mm) | 500 | 1000 |
| Max. cutting diameter(mm) | 350 | 350 |
| Standard cutting diameter(mm) | 280 | 280 |
| Max. turning diameter on the skateboard(mm) | 350 | 350 |
| Spindle nose type | A2-6 | A2-6 |
| Main shaft hole diameter(mm) | 65 | 65 |
| Max. over bar diameter(mm) | 50 | 50 |
| Spindle speed range（r/min） | 4500 | 4500 |
| Spindle motor power（KW） | 15 | 15 |
| Chuck type（inch） | 8 | 8 |
| X-axis Fast shift speed(m/min) | 30 | 30 |
| Z-axis Fast shift speed(m/min) | 30 | 30 |
| X-axis travel(mm) | 200 | 200 |
| Z-axis travel(mm) | 560 | 1050 |
| Tailseat travel(mm) | 450 | 950 |
| Tailstock sleeve cone hole taper (Mohs) | 5# | 5# |
| Standard knife holder form | Horizontal 8 station | Horizontal 8 station |
| machine size (mm) | 2790L*1900W*1850H | 3570L*1900W*1850H |
| Machine weight (KG) | 3600 | 4500 |
