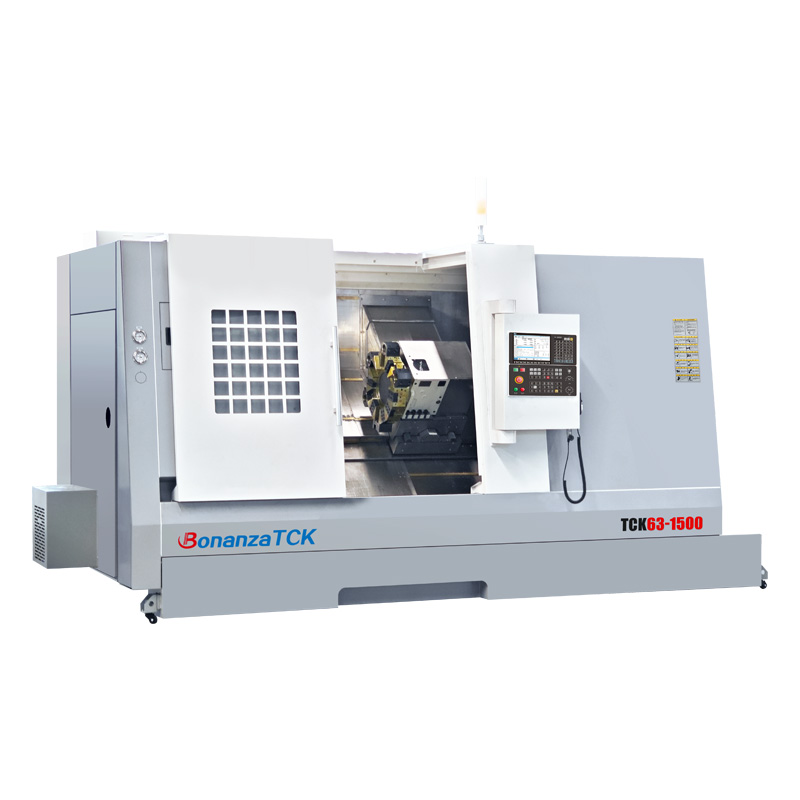

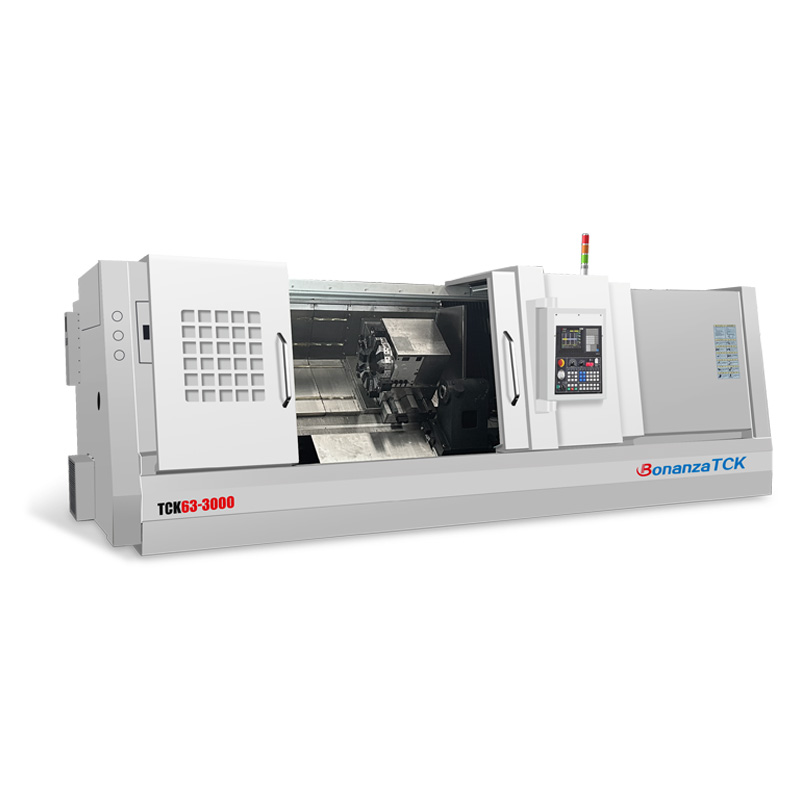

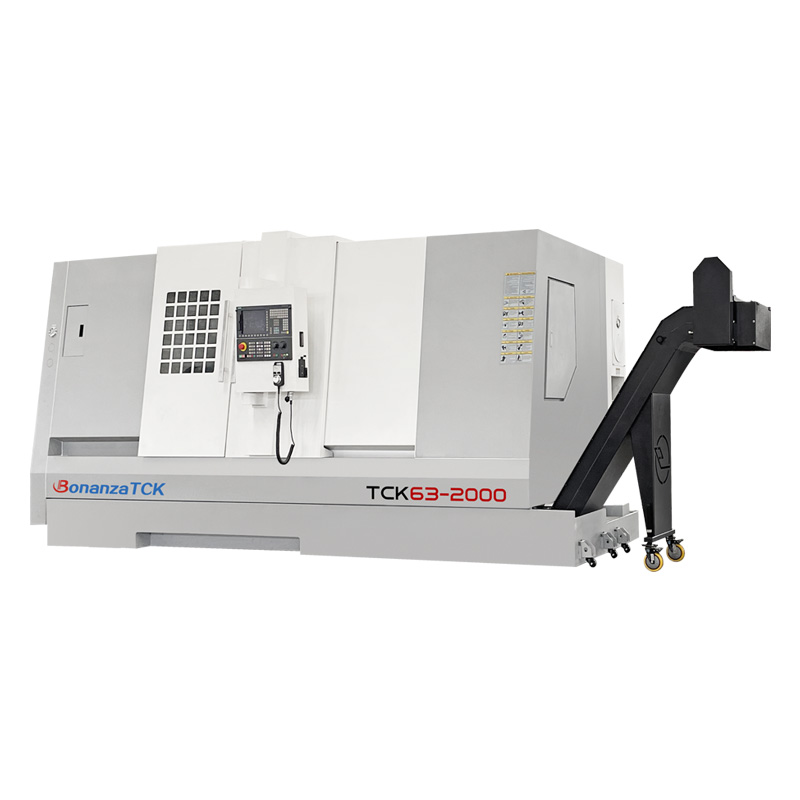

| speicifications | TCK63-1000 | TCK63-1500 | TCK63-2000 | TCK63-3000 |
| Max. turning diameter on bed(mm) | 720 | 720 | 720 | 720 |
| Max. cutting length(mm) | 1000 | 1500 | 2000 | 3000 |
| Max. cutting diameter(mm) | 500 | 500 | 500 | 500 |
| Standard cutting diameter(mm) | 380 | 380 | 380 | 380 |
| Max. turning diameter on the skateboard(mm) | 420 | 420 | 420 | 420 |
| Spindle nose type | A2-8 or A2-11 | A2-8 or A2-11 | A2-8 or A2-11 | A2-8 or A2-11 |
| Main shaft hole diameter(mm) | 80 | 80 | 80 | 104 |
| Max. over bar diameter(mm) | 70 | 70 | 70 | 70 |
| Spindle speed range（r/min） | 2000 | 2000 | 2000 | 2000 |
| Spindle motor power（KW） | 18.5 | 18.5 | 18.5 | 18.5 |
| Chuck type（inch） | 10 or 12 | 10 or 12 | 10 or 12 | 10 or 12 |
| X-axis Fast shift speed(m/min) | 12 | 12 | 12 | 12 |
| Z-axis Fast shift speed(m/min) | 16 | 16 | 16 | 16 |
| X-axis travel(mm) | 250 | 250 | 250 | 300 |
| Z-axis travel(mm) | 1020 | 1520 | 2050 | 3050 |
| Tail seat travel(mm) | 900 | 1400 | 1950 | 2800 |
| Tail seat sleeve travel(mm) | 138 | 138 | 100 | 100 |
| Standard knife holder form | Horizontal 12 station servo turret | Horizontal 12 station servo turret | Horizontal 12 station servo turret | Horizontal 12 station servo turret |
| machine size (mm) | 4130L*2145W*2230H | 4370L*2350W*2235H | 4850L*2030W*2375H | 5850L*2030W*2375H |
| Machine weight (KG) | 8000 | 9500 | 11000 | 12000 |
