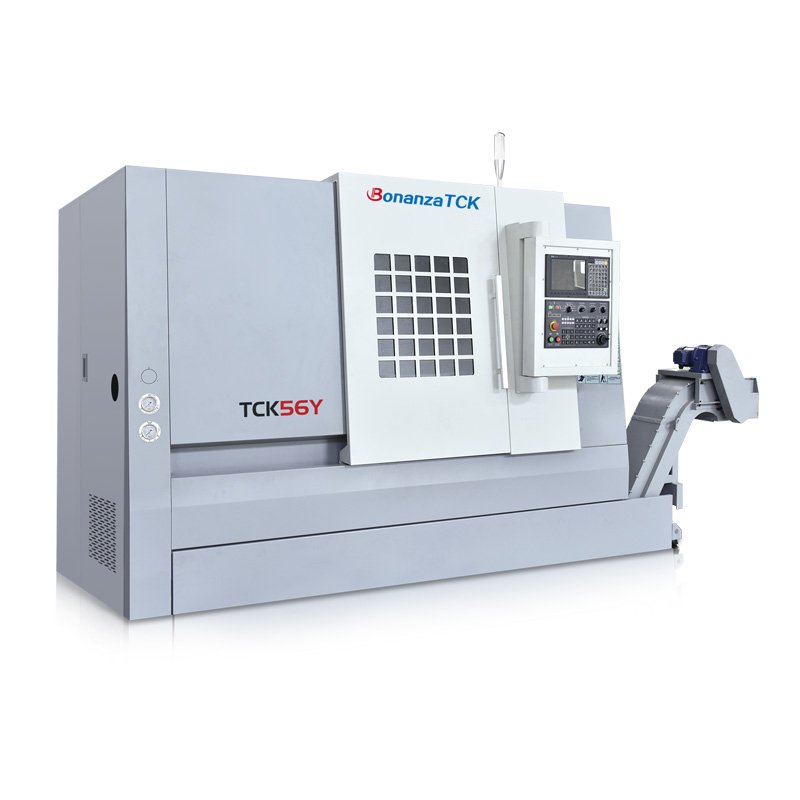

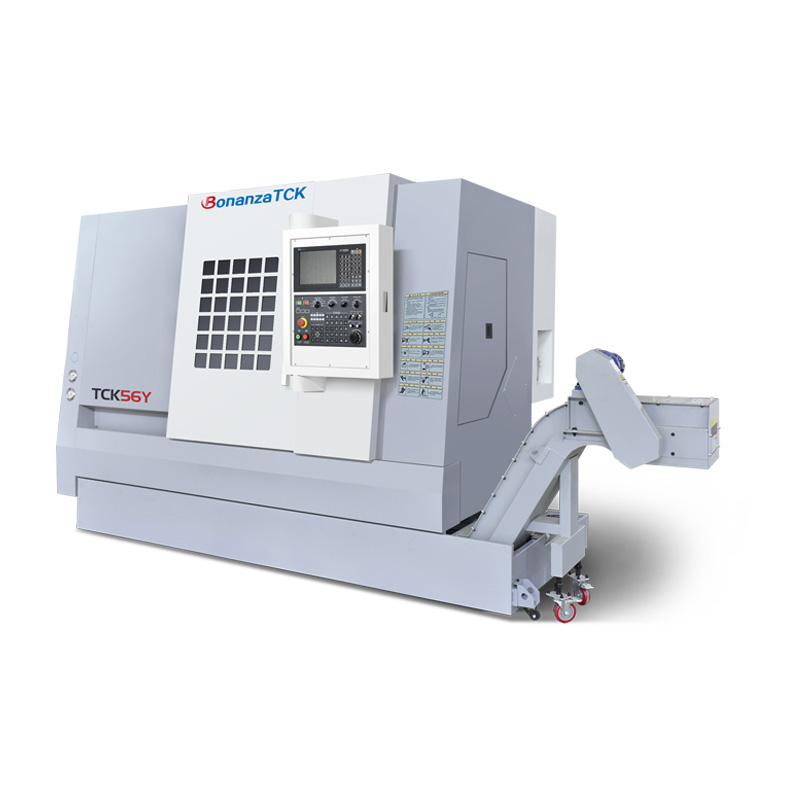

TCK56Y CNC Turning & Milling Machine

A2-6 high rigidity electric spindle speed up to 4500 rpm electric spindle.

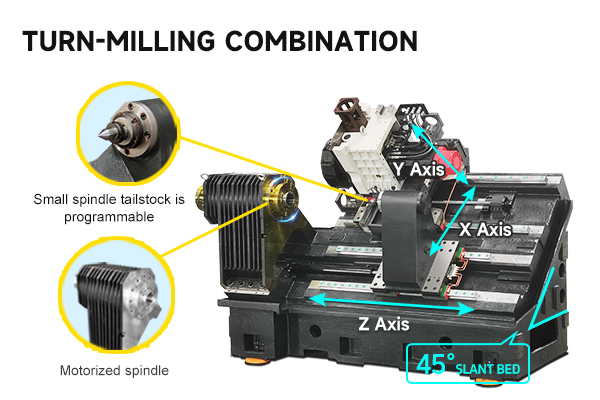

The customized small spindle tailstock has higher precision than the traditional rotary top, with a runout of up to 3u. It adopts a spindle design structure and has a longer service life.

Max cutting diameter
310 mm
Main shaft hole diameter
65 mm
Max over bar diameter
50 mm

Details
Specifications
Related Products
Contact Us
Inquiry

Details


Specifications

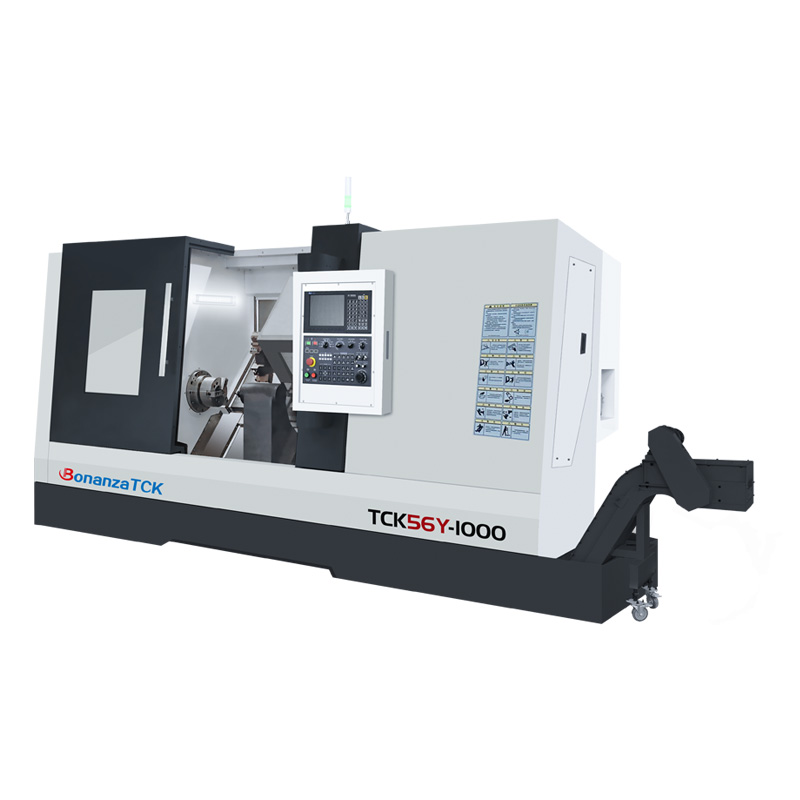

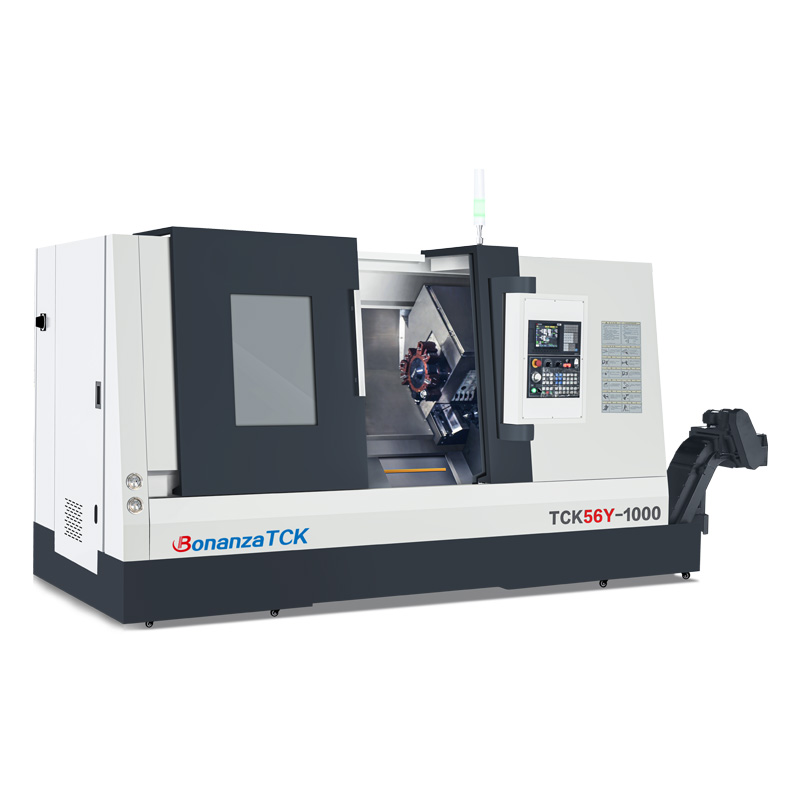

speicifications	TCK56Y	TCK56Y-1000
Max. turning diameter on bed(mm)	560	560
Max. cutting length(mm)	400	930
Max. cutting diameter(mm)	300	350
Spindle nose type	A2-6	A2-6
Main shaft hole diameter(mm)	65	65
Spindle speed range（r/min）	4500	4500
Spindle motor power（KW）	30	30
X-axis travel(mm)	200	200
Z-axis travel(mm)	550	950
Y-axis travel(mm)	±30	±30
Knife holder form	12 station power knife tower	12 station power knife tower
machine size (mm)	3824L1890W2250H	4324L1890W2250H
Machine weight (KG)	3500	4200
