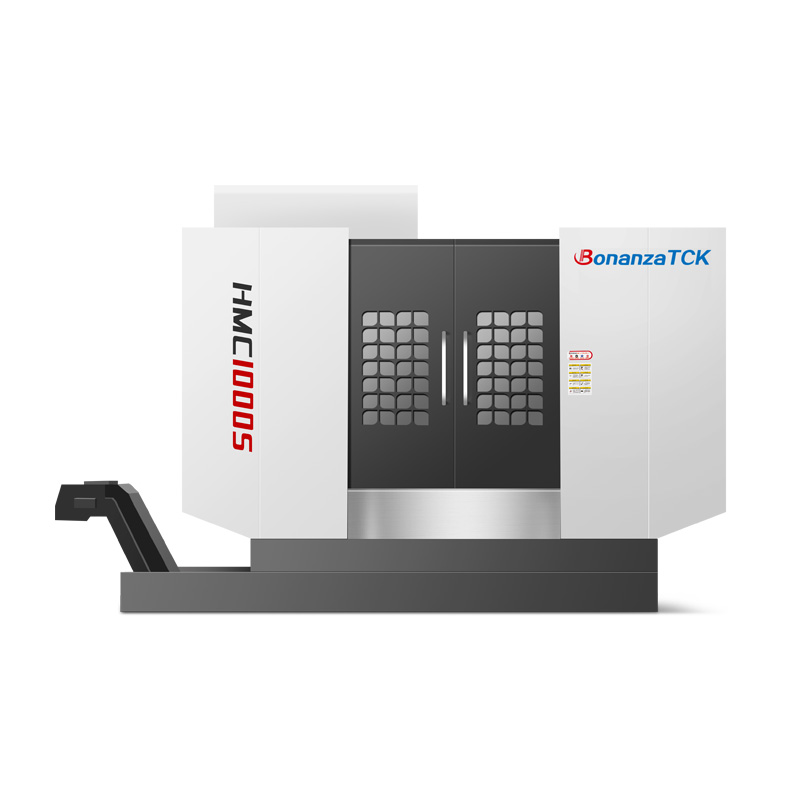

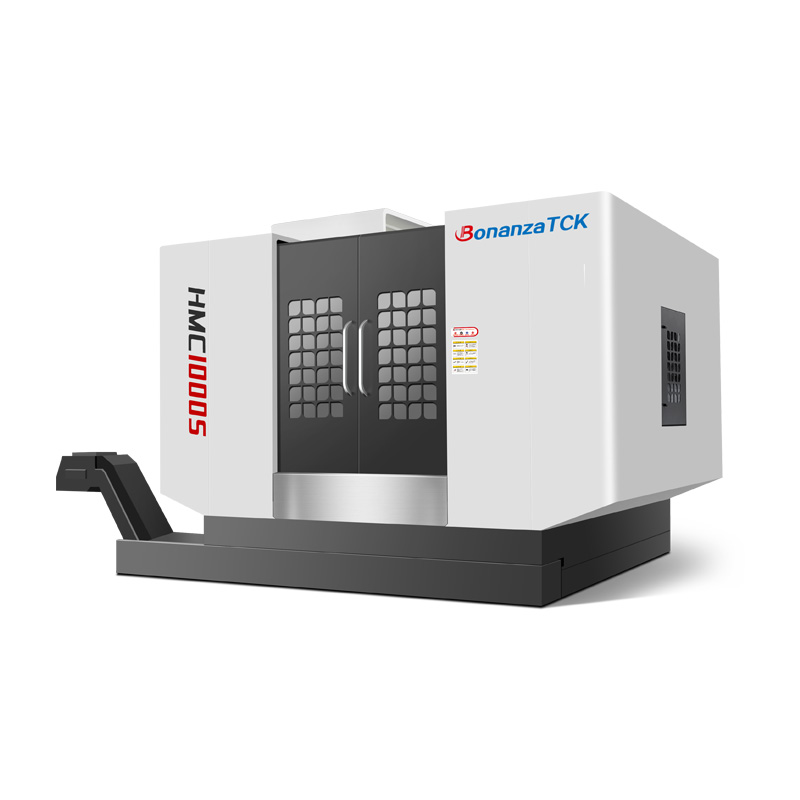

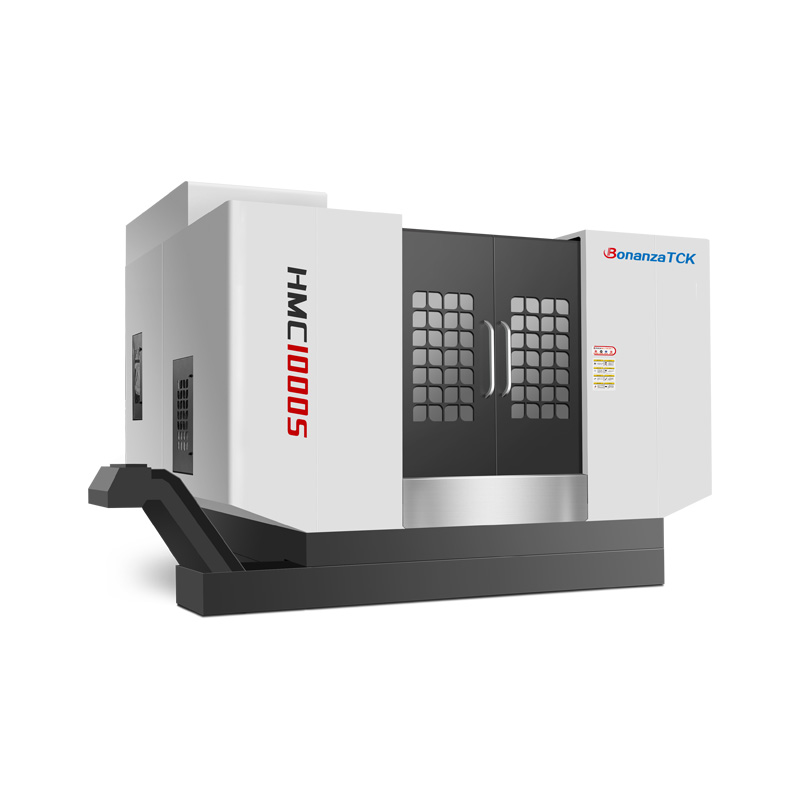

HMC1000 Horizontal Machining Center

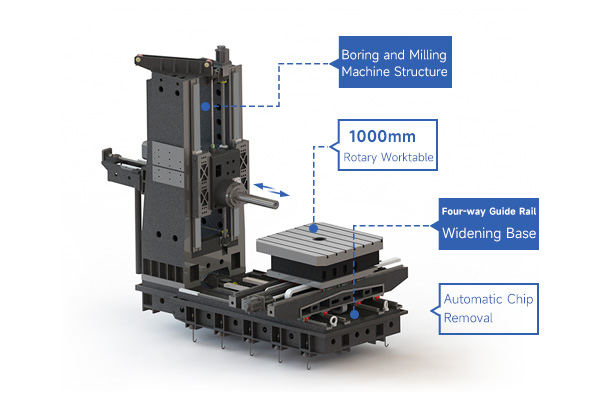

The worktable with a positive structure performs front and rear transportation on the vertical bed, while the columns move left and right on the horizontal bed. This structure makes the moving parts lighter in weight and more suitable for precision machining.

Work table size
1000*1000
X/Y/Z-axis travel
X:1300 Y:1100 Z:1200
Spindle taper
BT 50 φ190

Details
Specifications
Related Products
Contact Us
Inquiry

Details


Specifications

Speicifications	HMC1000	HMC1000S
Table size （mm）	1000×1000	1000×1000
Max. worktable load（kg）	3500	4000
T-slot (numberwidthdistance)	7-22-125	7-22-125
X-axis travel(mm)	1300	1800
Y-axis travel(mm)	1100	1000
Z-axis travel(mm)	1200	1300
X-axis Fast shift speed(m/min)	15	14
Y-axis Fast shift speed(m/min)	12	12
Z-axis Fast shift speed(m/min)	15	14
Spindle taper hole	BT50Φ190	BT50-45°
Spindle speed (rpm)	6000	3000
Machine weight (KG)	18000	15000
