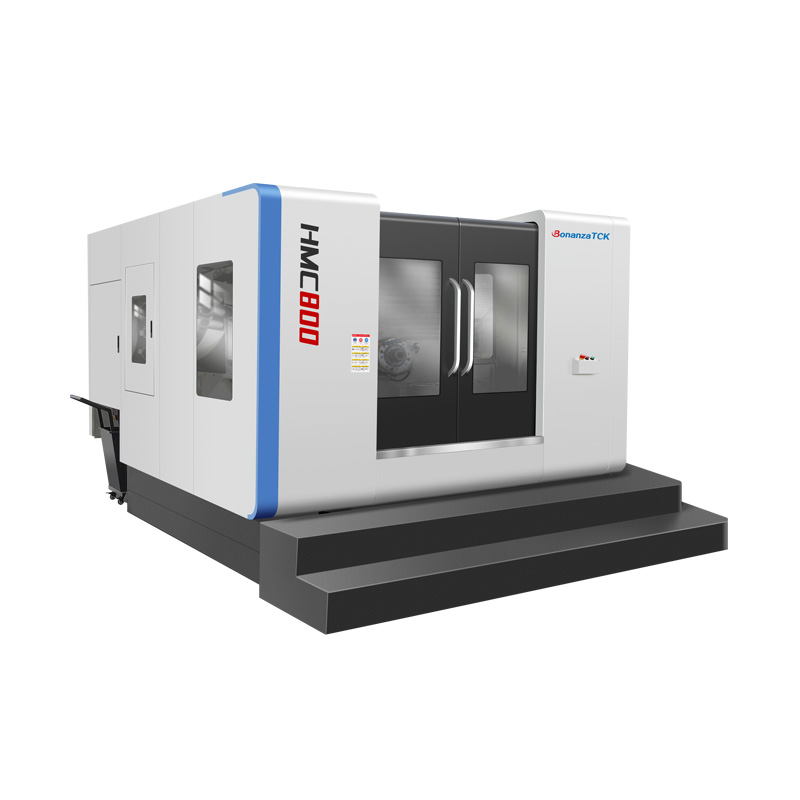

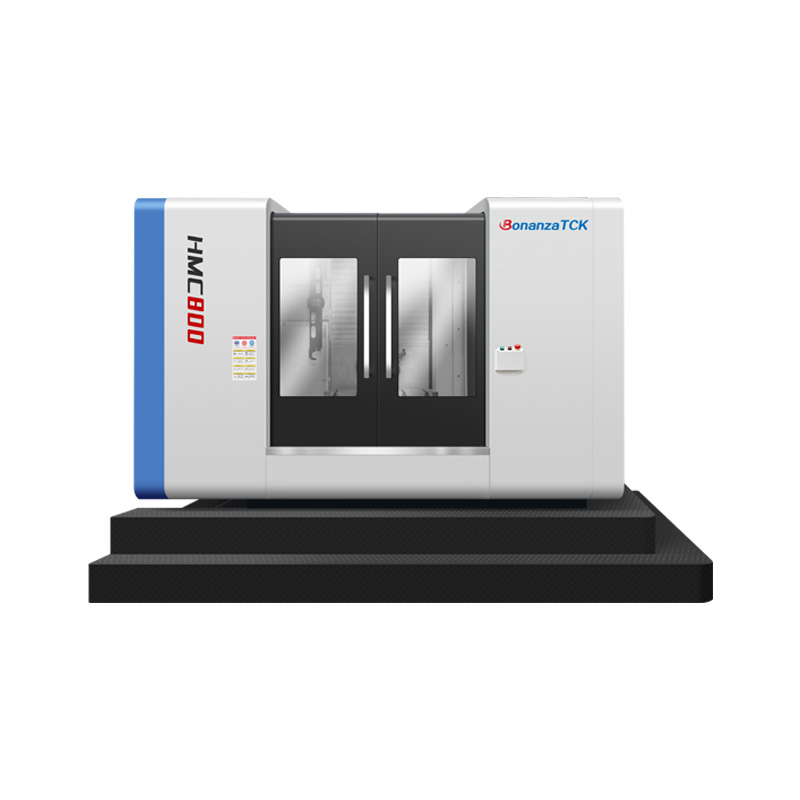

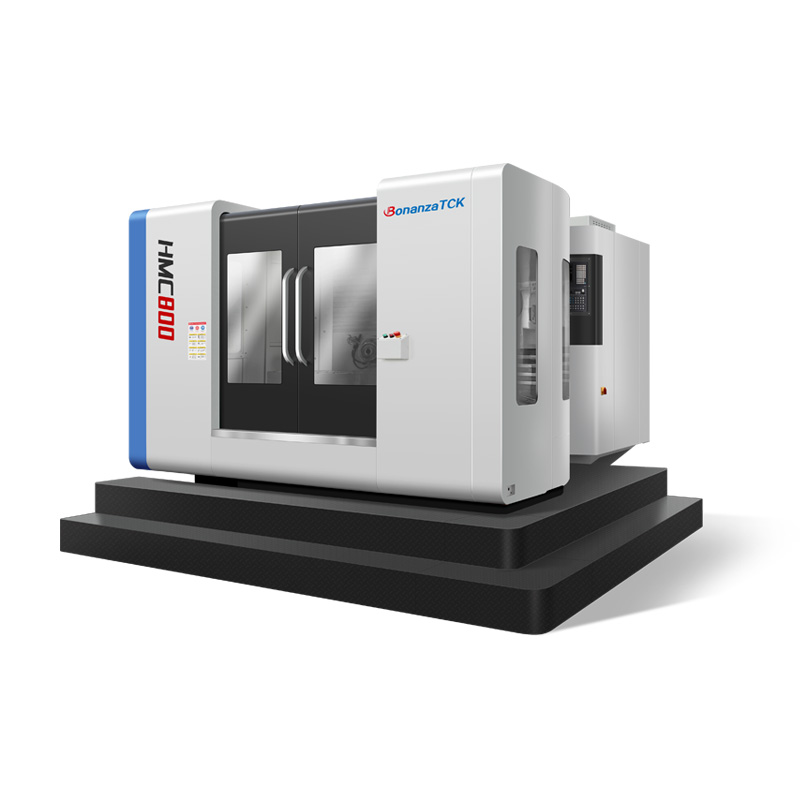

HMC800 Horizontal Machining Center

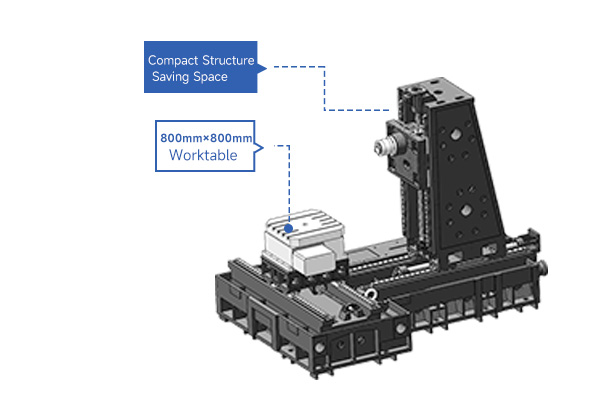

The X-axis guide rail adopts a high and low rail structure to improve the stability of machine tool movement.
The spindle is equipped with a reducer structure to improve the cutting torque of the machine tool spindle.
Adopting a 55 heavy-duty guide rail with a larger span between the rails, the spindle adopts a BT50-200 spindle, which has better rigidity than the traditional 190 spindle
  • Work table size
    1000*1000
  • X/Y/Z-axis travel
    X:1300 Y:1100 Z:1200
  • Spindle taper
    BT 50 φ190

Details


Specifications

speicificationsHMC800
Table size （mm）800×800
Max. worktable load（kg）2500
T-slot (number*width*distance)7-22-100
X-axis travel(mm)1300
Y-axis travel(mm)1150
Z-axis travel(mm)1000
X-axis Fast shift speed(m/min)12
Y-axis Fast shift speed(m/min)12
Z-axis Fast shift speed(m/min)12
Spindle taper holeBT50Φ200
Spindle speed (rpm)6000
Machine weight (KG)16000
